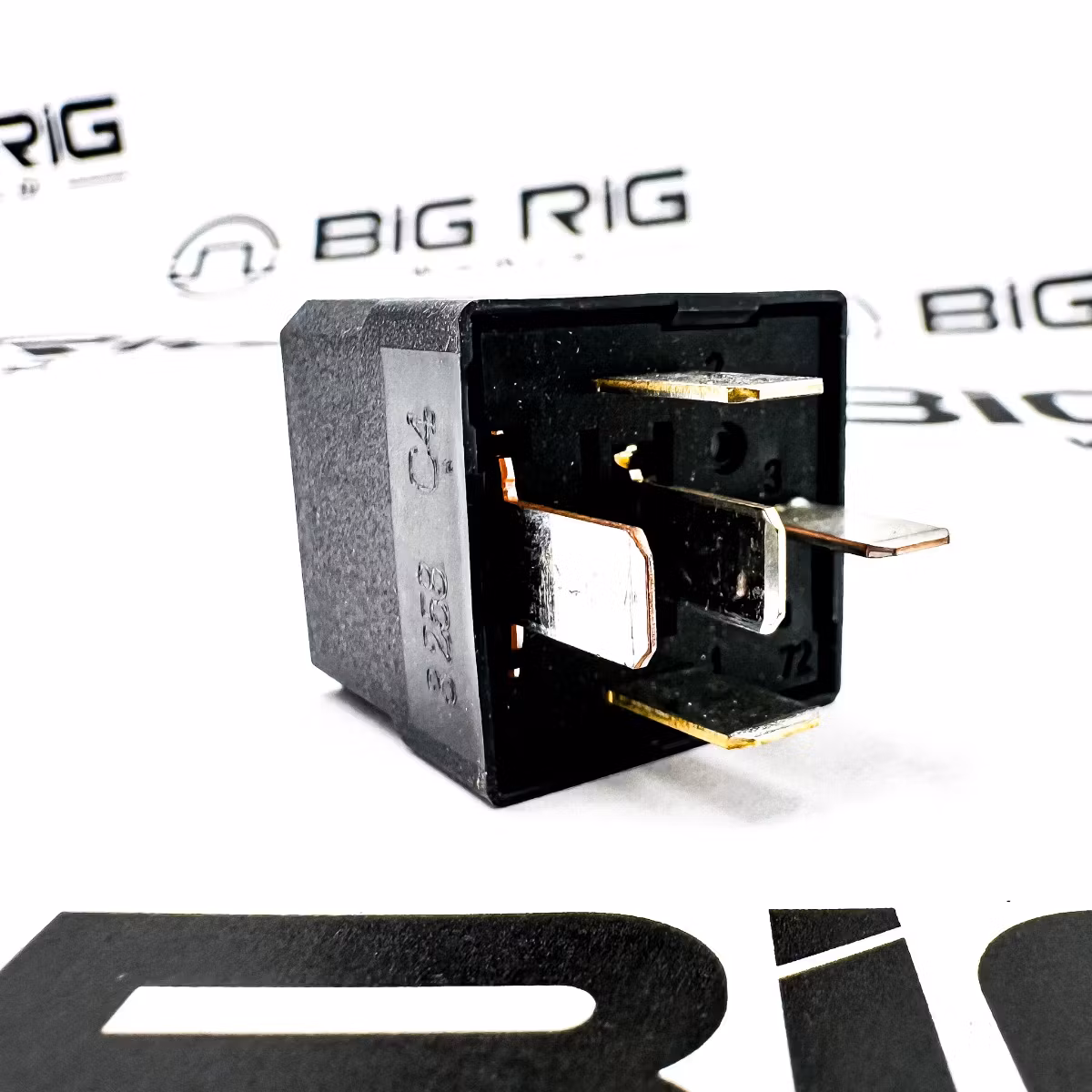

Relay24 Volt 10/20 Amperes 007903001

This 24 V SPDT (Form C) mini ISO relay features an onboard resistor coil suppression and a protective dust cover. Designed for rugged vehicle applications, it delivers reliable switching performance and high electrical integrity while resisting harsh environmental conditions.

• Voltage Rating: 24 V
• Contact Configuration: SPDT (Single Pole Double Throw)
• Current Capacity: 20 A continuous (Normally Open), 10 A continuous (Normally Closed)
• Inrush/Thermal Limit: 150 A lamp / 166 A motor peak
• Coil Suppression: Built-in resistor (1 20 Ω)
• Switching Speed: ≤10 ms operate/release
• Dielectric Strength: ≥1 000 V DC
• Temperature Range: –40 °C to +125 °C
• Protection Rating: IP 54
• Terminal Type: Five 6.3 × 0.8 mm ISO spade terminals
• Housing: Dust-covered mini ISO format
